Main Features

  • Fully automated 24/7 unattended operatable test station software
  • Realtime controls inside Beckhoff PLC, independent from WIN test station PC
  • Safe monitoring with Beckhoff Safety PLC
  • Programmable, PLC native and controlled shutdown procedure
  • LabVIEW based HMI design
  • Open LabVIEW or Python software interface
  • Continuous CSV datalogging of all test station parameters
  • Customizable graph and table profiles to display all test station parameters in an optimal organized way

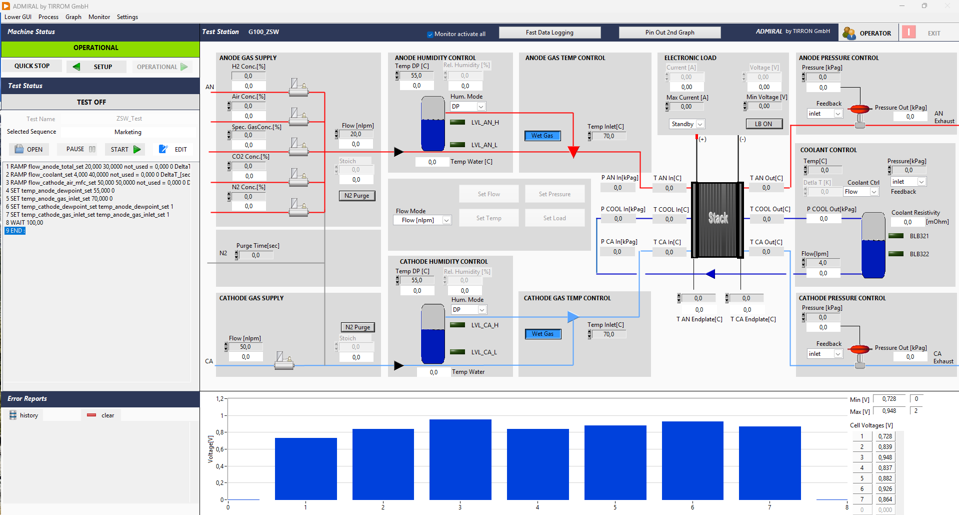

Admiral

Custom Process

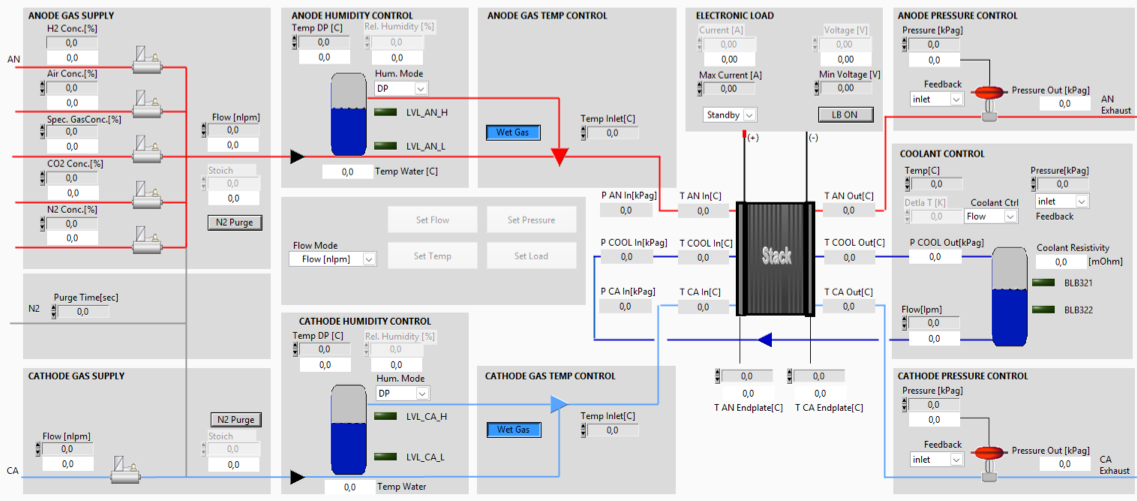

TIRRON customizes each station with a preconfigured custom process module for a complete test station overview. Inside the process view setpoints are automatically updated to reflect the status of the station, while an automated script is running. However, the user can always override a setpoint from the process view window, to correct possible scripting mistakes, or for runtime debugging of scripts.

Process

Alarm Handling

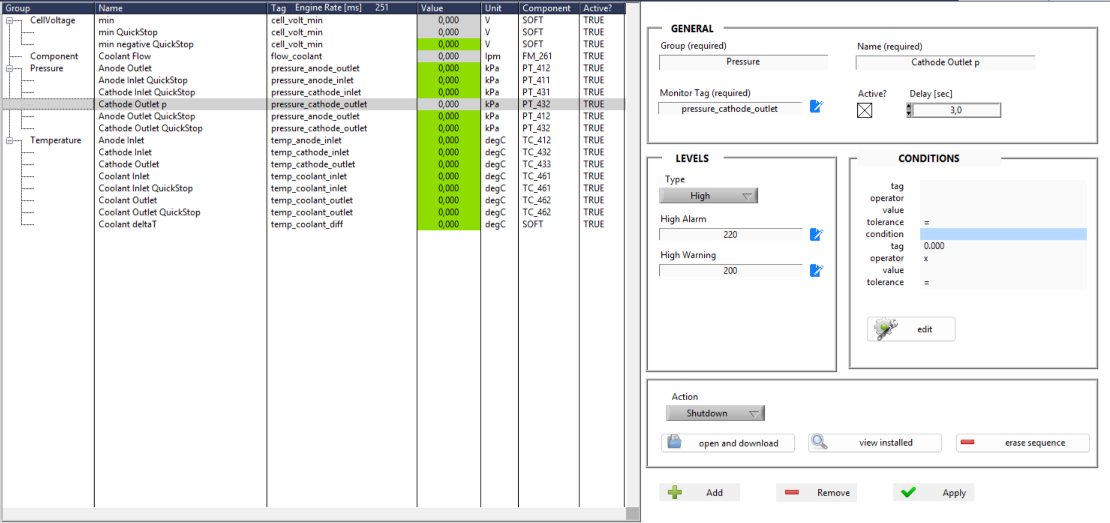

Admiral users can program alarm limits that results in different actions.

  • Messages: Notify users with a highligted message
  • Shutdown: Will trigger a predefined, PLC native shutdown procedure. This procedure will execute in realtime, even when the WIN test station PC is non functional
  • Fast Stop: Turns off the station and sets all setpoints to default values

Alarm

Control and Scaling

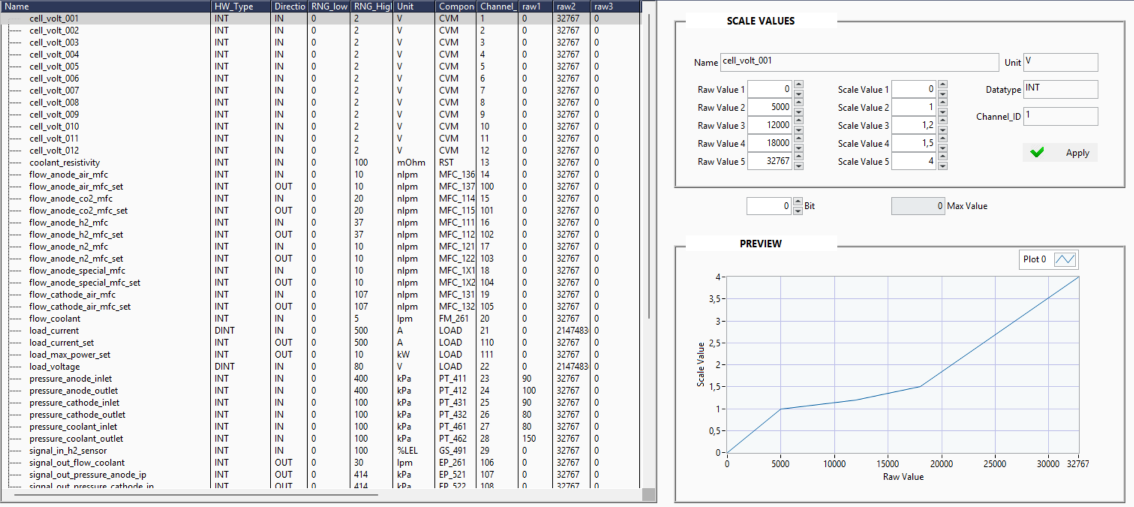

Runtime adjustable PID-Controllers allow tuning of each control loop. Every analog input and output signal can be scaled with an interpolated 5 point scale to adjust measurements and controls to non linear behavior.

Scale
